Rare Material Wire Mesh

时间: 点击量:

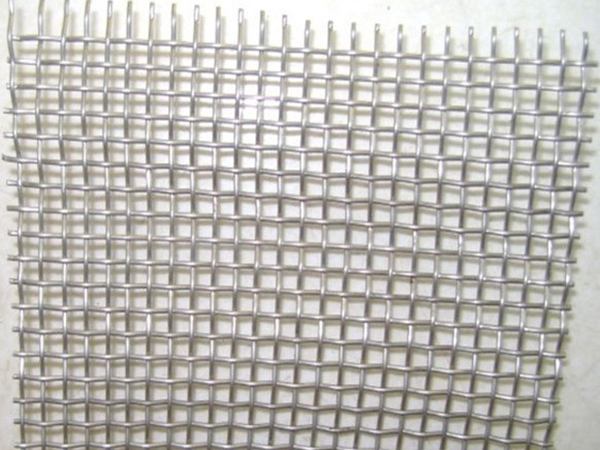

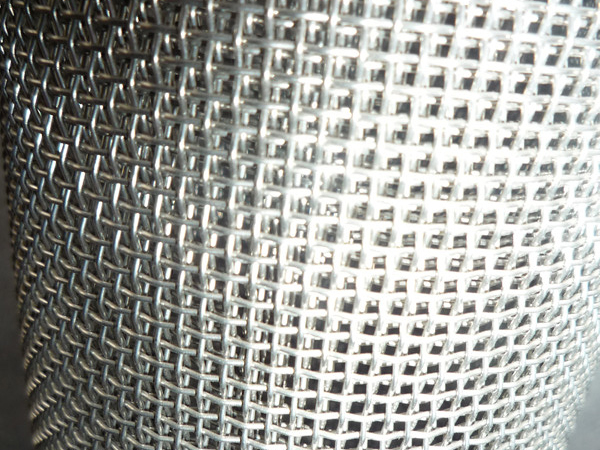

1. Titanium wire mesh:

Material: TA1, TA2, GR2, GR3, R50250, Titanium alloy etc. Black pure titanium wire Ti ≥ 99.6% (Applies to ships,

water filtration and other industries) Bright pure titanium wire (For production of electrodes, battery collector net, fine

chemical filtration) Medical titanium wire (Applies to make medical apparatus and instruments)

Hole Shape: square

Mesh Count: 0.2-100

Width: 5mm-2000mm

Weaving: Plain weave, twill weave.

Mesh	Wire diameter		Aperture/Opening		%Open Area
Mesh	Inch	Mm	Inch	Mm	%Open Area
1x1	.080	2.03	.920	23.37	84.6
2X2	.063	1.60	.437	11.10	76.4
3X3	.054	1.37	.279	7.09	70.1
4X4	.063	1.60	.187	4.75	56.0
4X4	.047	1.19	.203	5.16	65.9
5X5	.041	1.04	.159	4.04	63.2
6X6	.035	.89	.132	3.35	62.7
8X8	.028	.71	.097	2.46	60.2
10X10	.025	.64	.075	1.91	56.3
10X10	.020	.51	.080	2.03	64.0
12X12	.023	.584	.060	1.52	51.8
12X12	.020	.508	.063	1.60	57.2
14X14	.023	.584	.048	1.22	45.2
14X14	.020	.508	.051	1.30	51.0
16X16	.018	.457	.0445	1.13	50.7
18X18	.017	.432	.0386	.98	48.3
20X20	.020	.508	.0300	.76	36.0
20X20	.016	.406	.0340	.86	46.2
24X24	.014	.356	.0277	.70	44.2
30X30	.013	.330	.0203	.52	37.1
30X30	.012	.305	.0213	.54	40.8
30X30	.012	.305	.0213	.54	40.8
30X30	.009	.229	.0243	.62	53.1
35X35	.011	.279	.0176	.45	37.9
40X40	.010	.254	.0150	.38	36.0
50X50	.009	.229	.0110	.28	30.3
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
70X70	.0065	.165	.0078	.20	29.8
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0045	.114	.0055	.14	30.3
100X100	.004	.102	.0060	.15	36.0
100X100	.0035	.089	.0065	.17	42.3
100X100	.0035	.089	.0065	.17	42.3

Features

1 Titanium wire mesh is with low density and high specific strength.

2 Titanium wire mesh is with outstanding corrosion resistance. In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded, the layer is compact and inert, which has strong resistance to corrosion.

3 Titanium wire mesh has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts etc.

Applications

Titanium wire mesh can be used in shipbuilding, war industry manufacturing, chemical filter, mechanical filter,

desalination filter, high temperature vacuum equipment, medicine filtration industries etc.

2. Nickle wire Mesh:

nickel mesh can be divided into nickel woven wire mesh, nickel expended mesh, nickelperforated mesh, nickel knitted wire mesh. perforated mesh, nickel knitted wire mesh.

1.Introduction

· Material: Nickle wire

· Wire diameter:0.17mm-0.55mm

· Width: 40mm,80mm,100mm,150mm,200mm,300mm,400mm,500mm,600mm,800mm,1000mm,1200mm,1400mm

· Hole:2x3,4x5,6x12

· Surface:flat and undulation

2.Application

· Knitted wire mesh gasket

· Filter mesh for liquid and gas

· Filter cartridge

· Automotive sealing parts, shock (shock), silencers and exhaust purification components

· Electronics, electrical products anti-electromagnetic interference shielding devices

3.Specification

Type	Specification
Standard type	40-100 60-150 105-300 140-400 160-400 200-570
High-efficiency type	60-100 80-100 80-150 90-150 150-300 200-400 300-600
High-penetration type	20-100 30-150 70-400 100-600 170-560
Damping type	33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120
Packing	With carton
Min order	300meter

3. Monel Mesh:

Material	Common material: Monel 400, Monel 401, Monel 404, Monel R405, Monel K-500 Special material:brass/phosohor bronze / monel /pure nickel /nichrome ect.
Wire diameter	0.5-2.03mm
Mesh counts	2-200mesh
Surfuce	Smooth
Weave style	Plain weave Twill weave Dutch weave
Shape	square
Technique	weave
Feature	Monel wire mesh has the features such as: Superior corrosion resistance and acid-alkali resistance; High temperature resistance; Resistance to stress corrosion; High tensile strength; Excellent hardness.
Application	Monel wire mesh can be widely used in chemical and petrochemical industry and marine development etc. Monel wire mesh also can be used to manufacture all kinds of heat exchange equipment, pressure vessel, boiler feed water heater equipment, oil and chemical pipelines, containers, towers, tank, valves etc
Popular size	2mesh-200mesh

4. Copper Mesh:

Material: copper wire,brass wire,phosphor bronze wire

Feature:it is non-magnetic,anti-sparking and is resistant to atmospheric corrosion,salt air and brine

Usage: Separation and sifting kinds pellet,grain,porcelain earth and glass,chinaware printing,filter liquid etc.

Mesh/inch	Wire Diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	40mesh	0.21	0.425
3mesh	1.60	6.866	50mesh	0.19	0.318
4mesh	1.20	5.15	60mesh	0.15	0.273
5mesh	0.91	4.17	70mesh	0.14	0.223
6mesh	0.80	3.433	80mesh	0.12	0.198
8mesh	0.60	2.575	90mesh	0.11	0.172
10mesh	0.55	1.99	100mesh	0.10	0.154
12mesh	0.50	1.616	120mesh	0.08	0.132
14mesh	0.45	1.326	140mesh	0.07	0.111
16mesh	0.40	1.188	150mesh	0.065	0.104
18mesh	0.35	1.060	160mesh	0.065	0.094
20mesh	0.30	0.970	180mesh	0.053	0.088
26mesh	0.28	0.696	200mesh	0.053	0.074
30mesh	0.25	0.596
